Fully Automatic Paper Cup Making Machine with Robotics Arm

FULLY AUTOMATIC PAPER CUP MAKING MACHINE

Top Speed 70Cup/Min

Available: In Stock

Prime Machinery offer Fully Automatic Paper Cup Making Machine with Robotics Arm (PMC-700), PMC-700 inbuild all the latest feature as Automatic Piece Counting System, Sensor Based System, Automatic Heat Control System, Alarm System. PMC-700 is fully automatic paper cup machine with robotics arm so chances of wastage is very low. PMC-700 have top speed 70Cup/Min. This is the best paper Cup Machine in India. PMC-700 is available in different bottom size. We can deliver this model from 2-20 Days as per stock and order. We have other model of paper cup machine as PMC-600, PMC-800HS, PMC-750KR, PMC-750. But PMC-700, is hot selling paper cup making machine in India and Nepal Reason for 35ml to 250ml.

Feature

• Robotics Arm
• Smooth Functioning
• High Production
• Less Time Consuming
• Long Service Life
• Gear Driven System
• Three Chain System
• Sensor For Automatic Alarm
• Automatic Piece Counting System

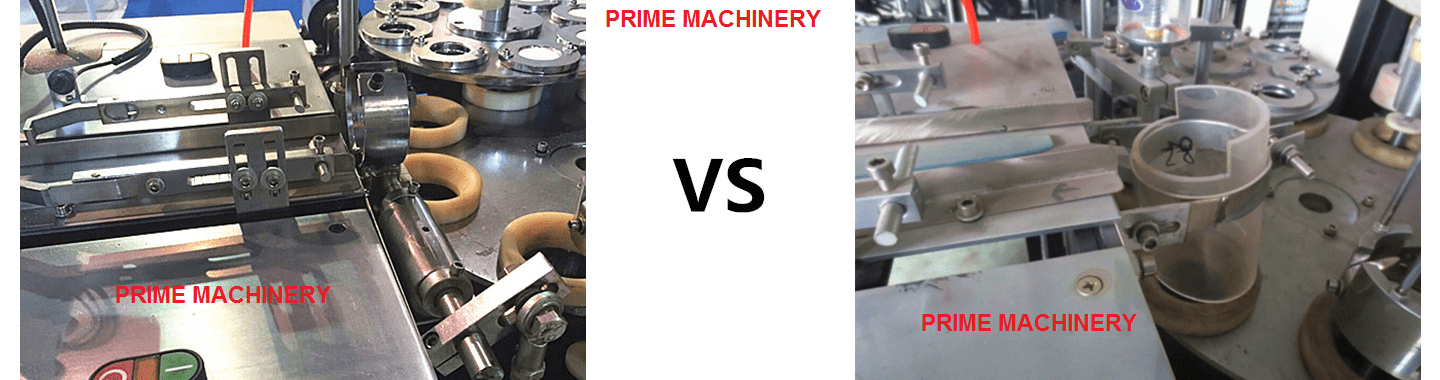

1. We use manipulator to transfer the cup body (through Robotics Arm) instead of falling itself by pipe, It is more stable and accurate under the fast running and bigger cup/glass.

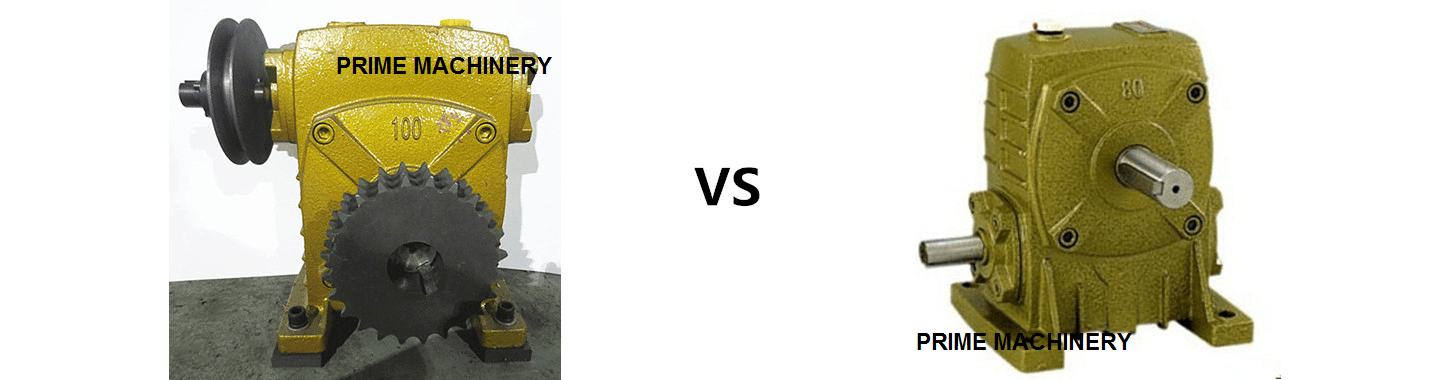

2. 100 type speed reducer is used instead 80

3. Organ type sucker is used for cup fan sucked to guarantee powerful sucking and more successful. The life is much longer than normal sucker. It also increase the overall efficency.

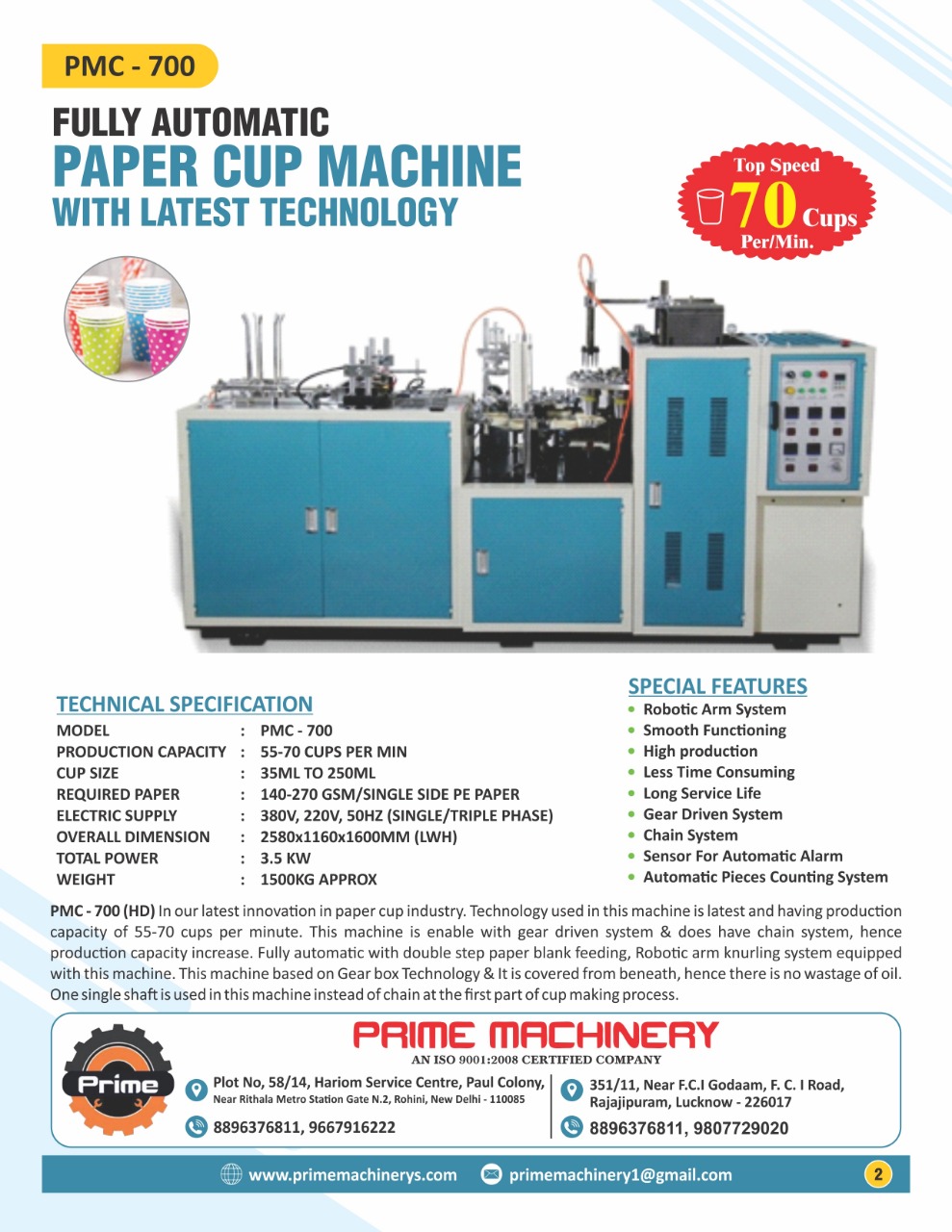

Technical Details

Fully Automatic Paper Cup Making Machine with Robotics Arm
Model	PMC-700
Production Capicity	55-70 Cup/Min
Cup Size	35ML to 250ML
Required Paper	140-270 GSM/SINGLE Side PE Paper
Electric Supply	380V, 220V, 50HZ (Single/Triple Phase)
Overall Dimension	2580x1160x1600MM (L W H)
Total Power	3.5 KW
Weight	1500 Kg Approx

Delivery

Delivery 3 - 20 days, We at Prime Machinery always full fill our commetment. We can deliver PMC-700 from 3 to 20 Working days as per current Stock.

FREE Installation*
